FEATURES
| Test Parameters | Specification |
|---|---|

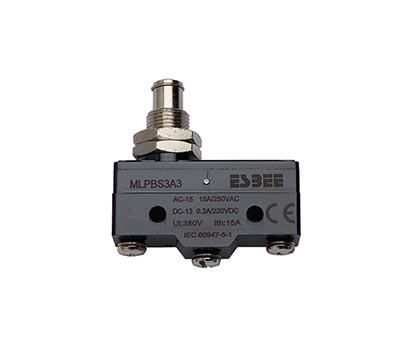

| Product | MLPBS3A3 |
| Humidity | General purpose type: 85% RH max., Sealed type: 95% RH max. |
| Vibration testing/ Mechanical Shock | 10-55Hz, 1.5mm double amplitude |
| Characteristics | |
|---|---|
| Dielectric strength | 1000VAC, 50/60 Hz for 1 minute between terminals of the same polarity |
| 1500VAC, 50/60 HZ for 1 minute between current-carrying and non-current- carrying metal parts | |
| 1500VAC, 50/60 HZ for 1 minute between each terminal and ground | |
| Vibration | 10-55Hz, 1.5mm double amplitude |
| Humidity | General purpose type: 85% RH max., Sealed type: 95% RH max. |
| Warranty | 24 Months* |
| Utilization Category for Limit Switches | ||
|---|---|---|
| Kind of Current | Category | Typical Application |
| Alternative Current | AC-15 | Control of Electromagnetic Load > 72 VA |
| Direct Current | DC-13 | Control of Electromagnets |
| Contact Rating Designation Based on Utilization Catagories | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Designation | Utilization Catagory | Conventional Enclosed Thermal Current | Rated Operational Current (A) at Rated Operational Voltage | VA Ratings | ||||||
| Resistance Load | 120 V | 240 V | 380 V | 480 V | 500 V | 600 V | Make | Break | ||
| AC-15 | 10 | 6 | 3 | - | - | - | - | - | 7200 | 720 |
| Direct Current | 125V | 250 V | 400 V | 500 V | 600 V | Make | Break | |||
| P600 | DC-13 | 5 | 1.1 | 0.55 | 0.31 | 0.27 | 0.2 | 138 | 138 | |
DOOR LIMIT SWITCHES FOR AUTOMOBILES FROM ESBEE
Door LImit switches for automobiles from Esbee are used to control or regulate the functioning of the door. As the name suggests, the door limit switch is used for limiting the functioning of the door. Door limit switches from Esbee come in different categories and for technical specifications and details you can refer to the table for the reference.
- Control of Quality: Every component of the product is thoroughly inspected from beginning to end, with a quality control check performed at each step. We use reliability and life cycle testing to provide the highest quality products from start to finish.
- Value For Customer: Our quality control procedures are a major source of motivation for us because we won't supply any products to clients if they don't match the industry standard for quality. For the sake of quantity, we never sacrifice any aspect of quality or development.
